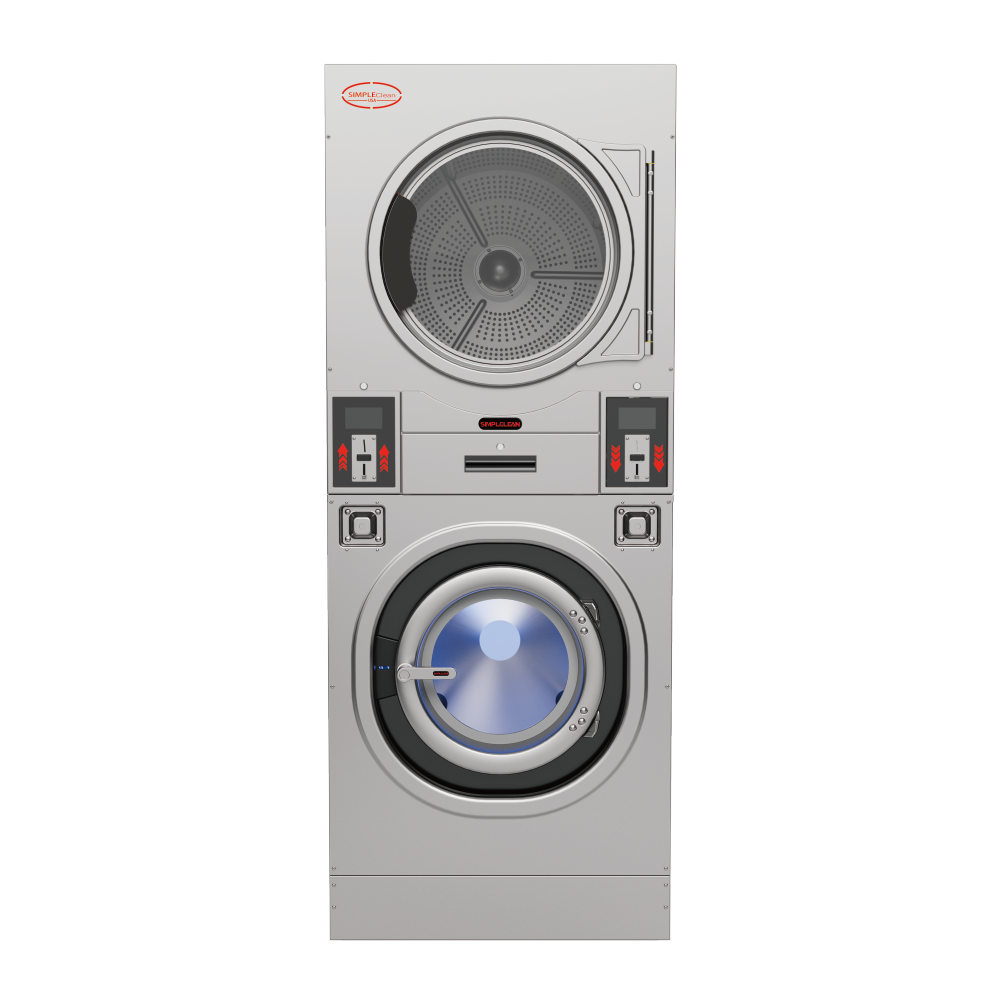

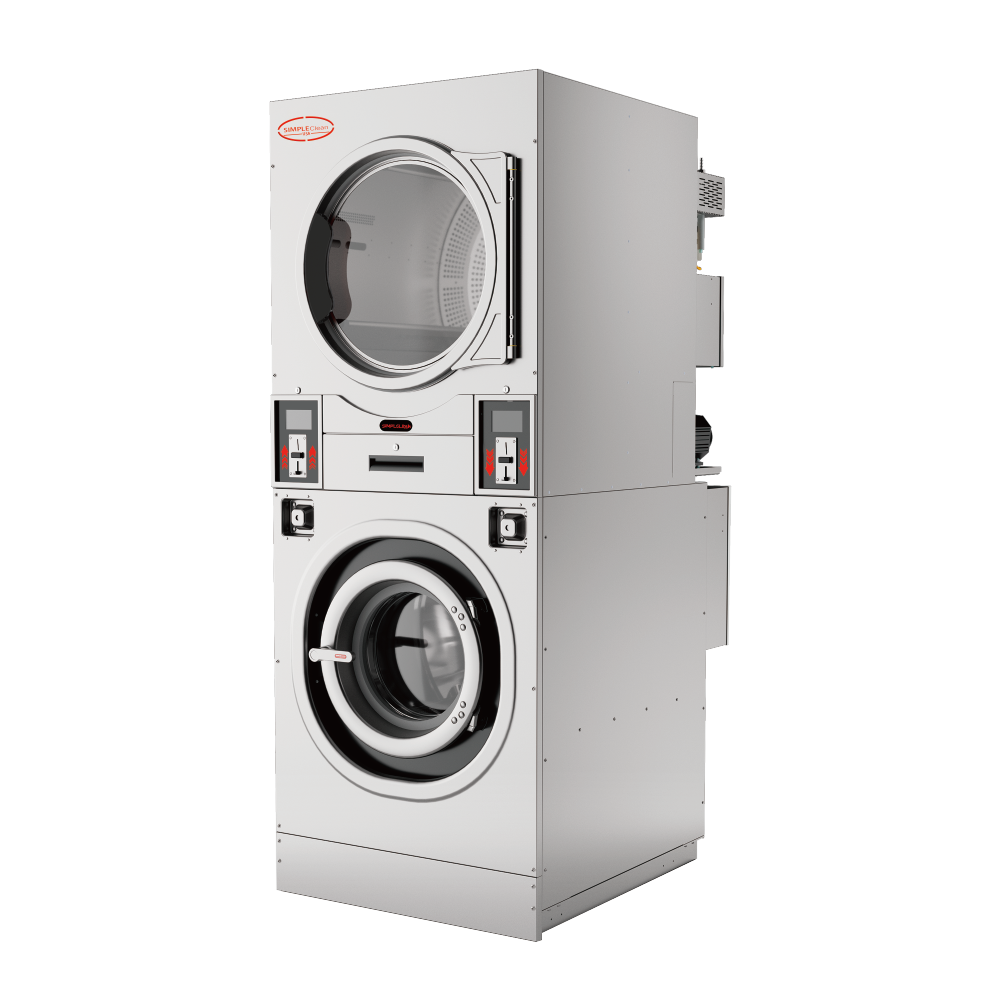

Stack Washer Dryer (soft mount)

Space saving: Stack machines around 40% space.
UV disinfection: Each machine features 2 UV lights that provide reliable sterilization during whole process and offer highest standards of cleanliness.
Auto reversving dryer tech: prevents bedding items from tangling and improves overall drying efficiency.
Flexible payment options avaliable.

Stack type become more popular in single outlet or a huge chain laundromat, it save more space and take higher profitability.
Free-standing soft mount stack washer-dryer designed for high-speed extraction (over 1000rpm).
High speed extraction – up to 450G reduces drying time.

The machine is manufactured in stainless steel drum, top, front and side panels, which gives better elegant look and provides better quality.
The machine is equipped with heavy duty frame and bearings, durable bearing housing, spider and shaft to reduce wear and tear greatly.
Automatic water mixing in washs, which means mixing hot and cold water to a precise temperature with the programmed water level, save energy and reduce wash cycle time.

Advanced inverter drive system and special heavy duty motor are used to provide smooth and reliable performance.
The new system of mixed axial-radial air-flow increases the efficiency of the whole drying process.
Large door opening is convenient for loading and unloading.
Multiple heating way and multiple language options is easier for a common user.

2nd-gen 10 inch touch screen, remote control system allows you to manage your laundry business through a mobile app.
20+ multiple language options are available.
Set up parameters of laundry programs easily.

Model	EC/12FWDD	EC/16FWDD	EC/22FWDD	EC/27FWDD
Washer Drum
Loading Capacity( L-Kg)	26lbs ( 12kg)	35lbs ( 16kg)	50lbs(22kg)	60lbs(27kg)
Volume (L)	116	148	194	237
Diameter (mm)	635	635	740	740
Depth(mm)	365	465	450	550
Dryer Drum
Loading Capacity( L-Kg)	26lbs ( 12kg)	35lbs ( 16kg)	50lbs(22kg)	60lbs(27kg)
Volume (L)	229	286	379	477
Diameter (mm)	745	745	855	855
Depth(mm)	525	655	660	830
Washer Speed
Washing Speed ( rpm)	32	32	32	32
High speed (rpm)	1000	1000	900	900
G-Force	363	363	343	343
Dryer Speed
Tumbler Speed ( rpm)	32	32	32	32
Power
Washer Motor( kw)	2.2	2.2	3	3.7
Washer Heating (kw) Electric heated(kw)	3*3	3*4	3*6	3*7
Washer Inverter Power(kw)	2.2	2.2	3.7	3.7
Dryer Motor( kw)	0.25	0.25	0.55	0.55
Dryer fan Motor( kw)	0.37	0.37	0.75	0.75
Dryer heating( kw)(Electric model)	10.5	10.5	13.5	19.8
Washer’s Connections
Water cold or hot Inlet (mm)	3/4	3/4	3/4	3/4
Drain size (mm)	3	3	3	3
Dryer’s Connection
Gas Inlet (inch)	1/2	1/2	1/2	1/2
Exhaust Pipe(mm)	200	200	200	200
Dryer’s Energy consumption
Gas Consumption（kg/H）	0.6	0.8	1	1.3
CFM (Btu/H)	55000	75000	95000	115000
Air Flow（m³/h）	800	800	1000	1000
Net dimensions
LWH (mm)	805x1049x2165	86011792165	91012422315	910×1405*2315
Net weight(kg)	526	589	750	910
Wooden box dimensions
LWH (mm)	98011692315	98012992315	103013622465	103015252465
Gross Weight(kg)	591	654	815	975
Heating way
Wash: Electricity or Hot water Dryer: Gas or Electricity
Usage way
Coin or OPL
