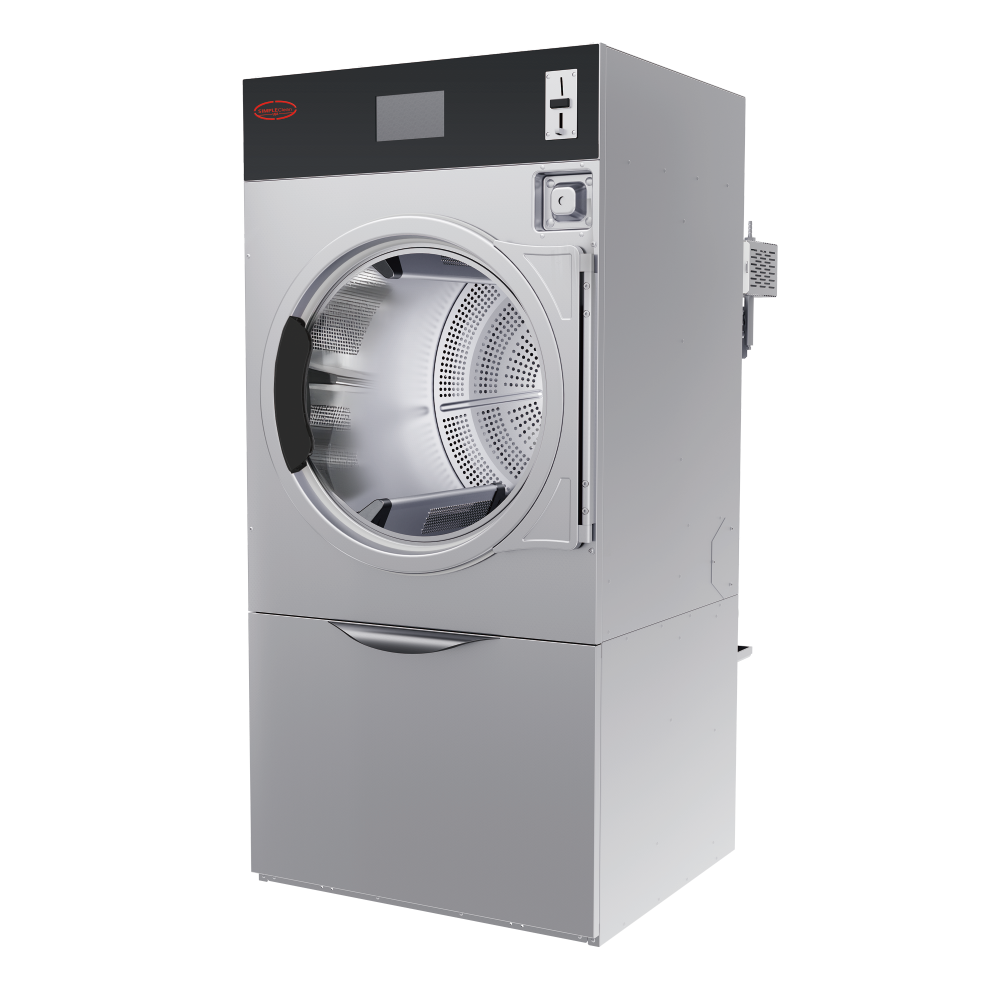

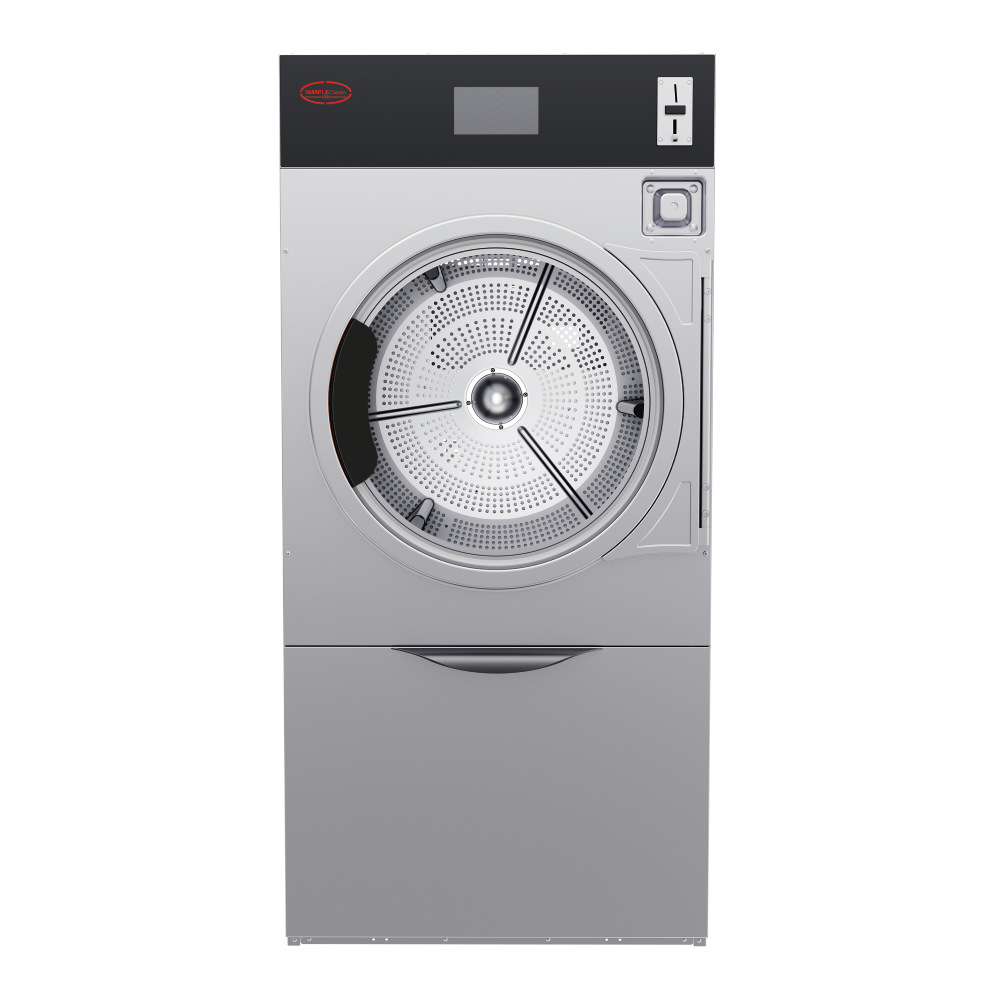

Single Tumble Dryer

  • Energy-Saving Design: Innovative small-tube gas heater cuts gas usage by up to 30%.
  • Auto Reversing Tech: Prevent bedding items from tangling and improving drying efficiency
  • Easy loading & unloading: Large-diameter door with a full 180° swing.
  • Flexible Payment Options: QR code, credit/debit card, coin, token, or remote payment systems avaliable.

Send E-mail Chat now

  • Application
  • Feature
  • Technical Parameters
  • Inquiry

Application

  • High quality dryers are important to keeping nursing home and the healthcare community operations running smoothly.
  • Electric and gas heating modes and more heating modes are provided for application scenarios.
  • Emergency control switch for customers to ensure safety.

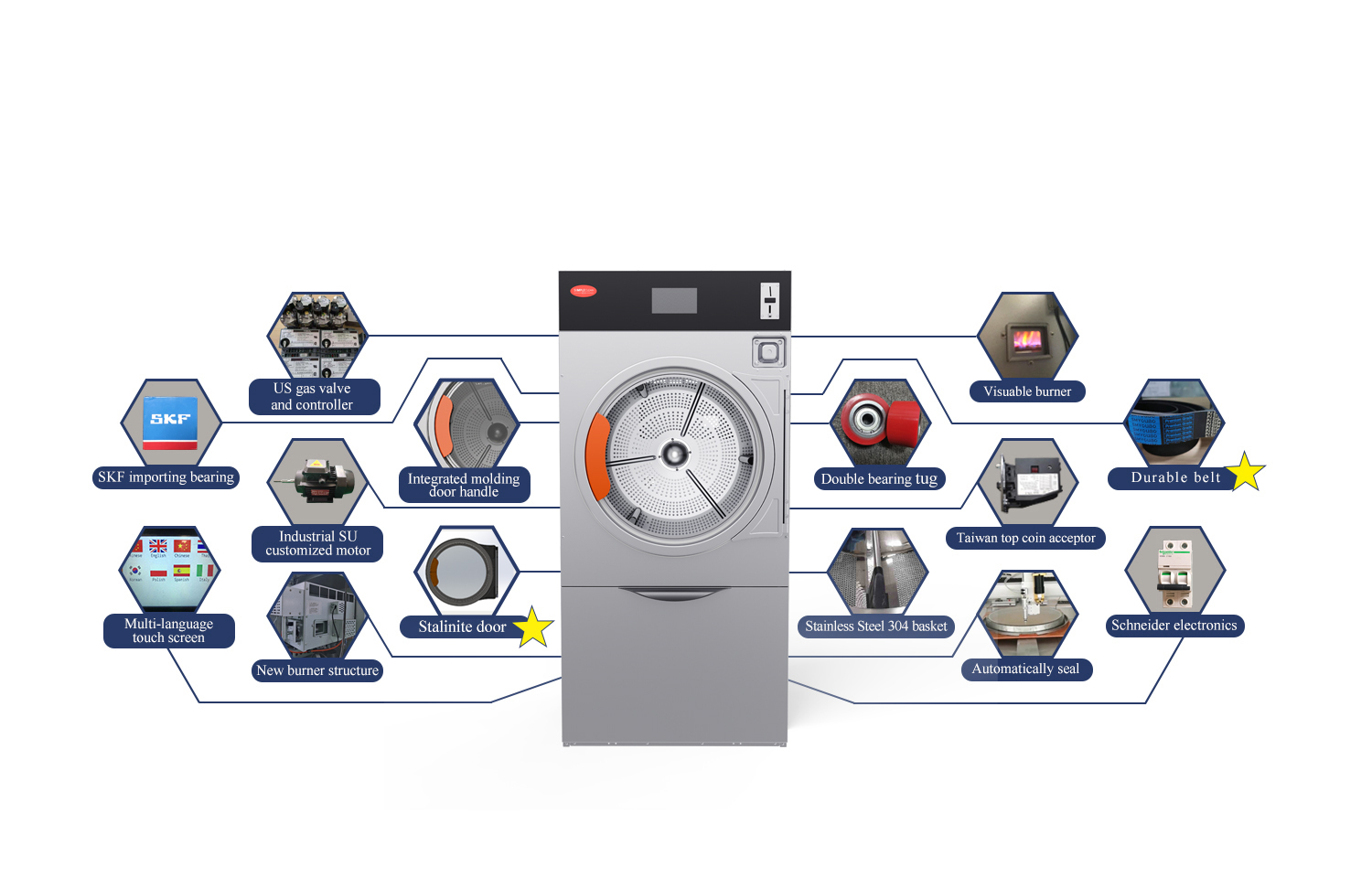

Feature

  • The dryer is equipped with heavy duty frame, bearing, shaft to reduce wear and tear greatly.
  • The new system of mixed axial-radial air-flow increases the efficiency of the whole drying process.
  • Multiple heating methods are available for different environments using.
  • Large and easy lint collector simplifies clean up.
  • 2nd-gen 10 inch touch screen, remote control system allows you to manage your laundry business through a mobile app.
  • 20+ multiple language options are available.
  • Edit programs and promotions according to your needs, error alert in seconds with details.

Single Tumble Dryer

Model EC/12DS EC/16DS EC/19DS EC/22DS EC/27DS EC/33DS
Drum
Loading Capacity( L-Kg) 26lbs ( 12kg) 35lbs ( 16kg) 42lbs(19kg) 50lbs(22kg) 60lbs(27kg) 75lbs(33kg)
Volume (L) 229 286 358 379 477 560
Power
Main Motor( kw) 0.25 0.25 0.25 0.55 0.55 0.55
Fan motor (kw) 0.37 0.37 0.37 0.37 0.37 0.37
Heating (kw) Electric heated 10.5 10.5 13.5 14.4 19.8 25.2
Gas Consumption (kg/H) 0.6 0.8 0.9 1 1.3 1.5
CFM (Btu/H) 55000 75000 90000 95000 115000 13500
Air Flow 800 800 900 1000 1000 1100
Connection
Gas Inlet (inch)  1/2  1/2  1/2  1/2  1/2  1/2
Exhaust Pipe(mm) 200 200 200 200 200 200
Net dimensions
L*W*H (mm) 800*991*1675 800*1121*1675 800*1286*1675 910*1124*1784 910*1294*1784 943*1336*1799
Net weight (kg) 182 190 210 223 251 273
Wooden box dimensions
L*W*H (mm) 920*1111*1825 920*1241*1825 920*1406*1825 1030*1244*1934 1030*1414*1934 1063*1456*1949
Gross Weight 222 230 250 263 291 313
Heating way
Electricity, Gas
Usage way
Coin or OPL
