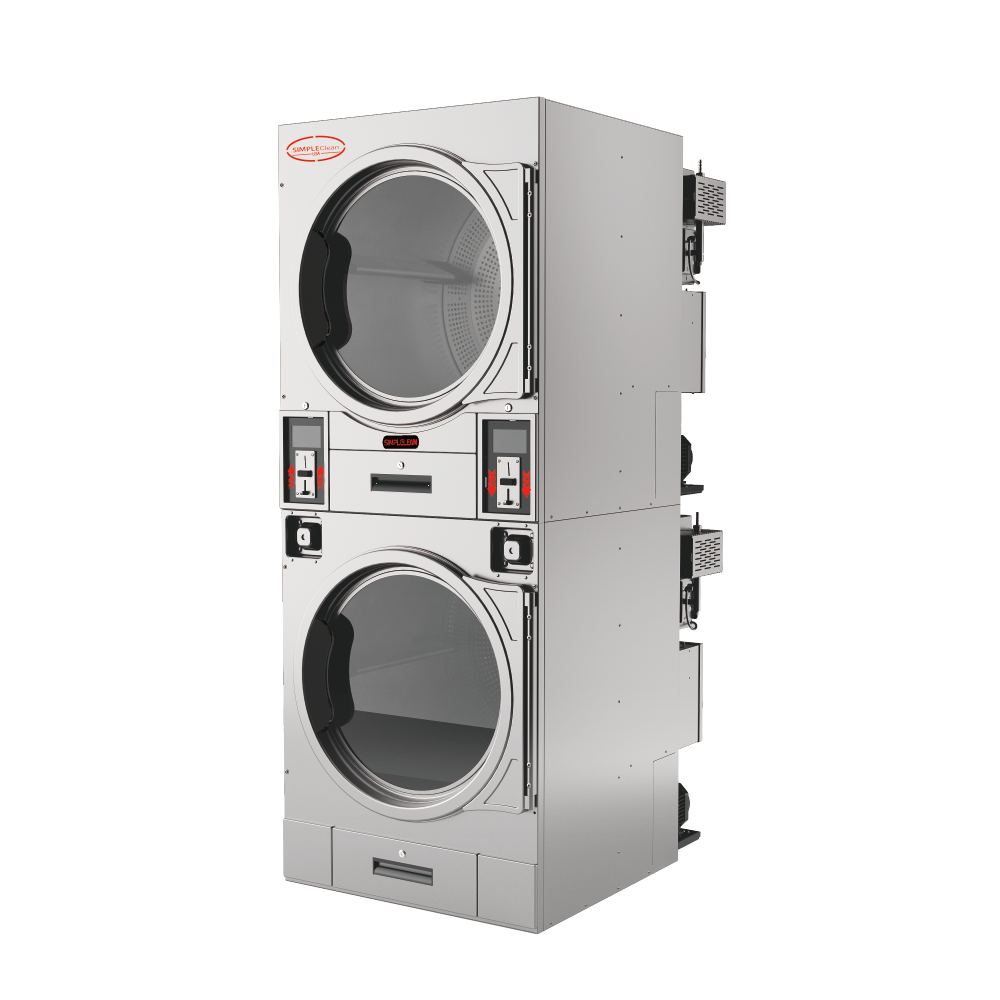

Stack Tumble Dryers
- Space saving: Stack machines save around 40% space.
- Energy-Saving Design: Innovative small-tube gas heater cuts gas usage by up to 30%.
- Auto Reversing Tech: Prevent bedding items from tangling and improving drying efficiency
- Easy loading & unloading: Large-diameter door with a full 180° swing.
- Flexible Payment Options: QR code, credit/debit card, coin, token, or remote payment systems avaliable.
Send E-mail
Chat now
- Application
- Feature
- Technical Parameters
-
- Inquiry
Application
- Stacked laundry units are popular for single/outlet and chain laundromats—space-saving, sturdy, durable, and high-profit for aspiring owners.
- Advanced inverter drive and heavy-duty motor deliver smooth, reliable daily performance.
- Premium gas valves and controllers ensure long-lasting, dependable operation to cut downtime.

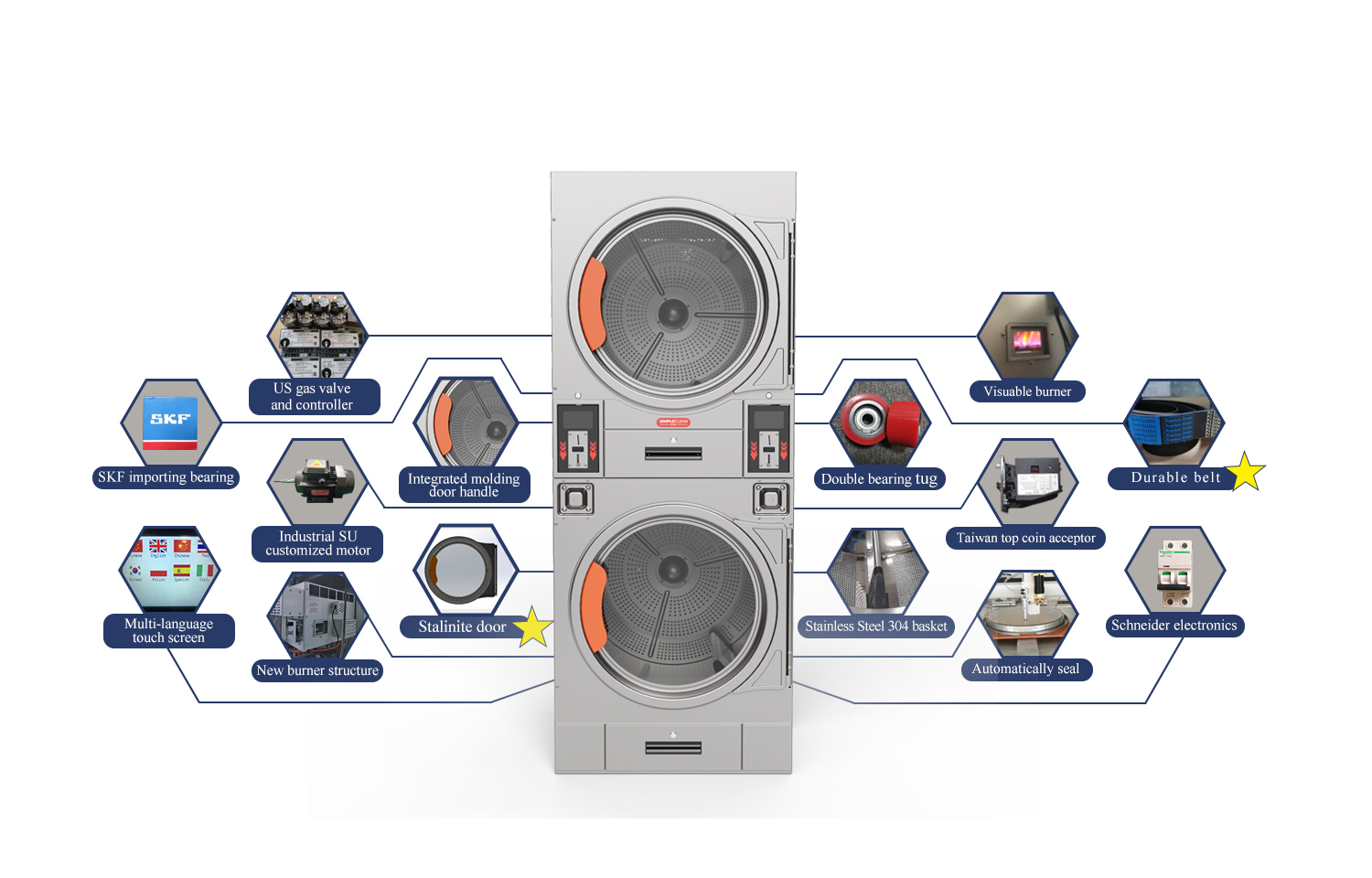

Feature
- The dryer is manufactured in stainless steel tub, drum, top, front and side panels, which gives better elegant look and provides better quality.
- The dryer is equipped with heavy duty frame, bearing, shaft to reduce wear and tear greatly.
- The new system of mixed axial-radial air-flow increases the efficiency of the whole drying process.
- Honeycomb structure of inner drum can reach more working efficiency and drying quality.

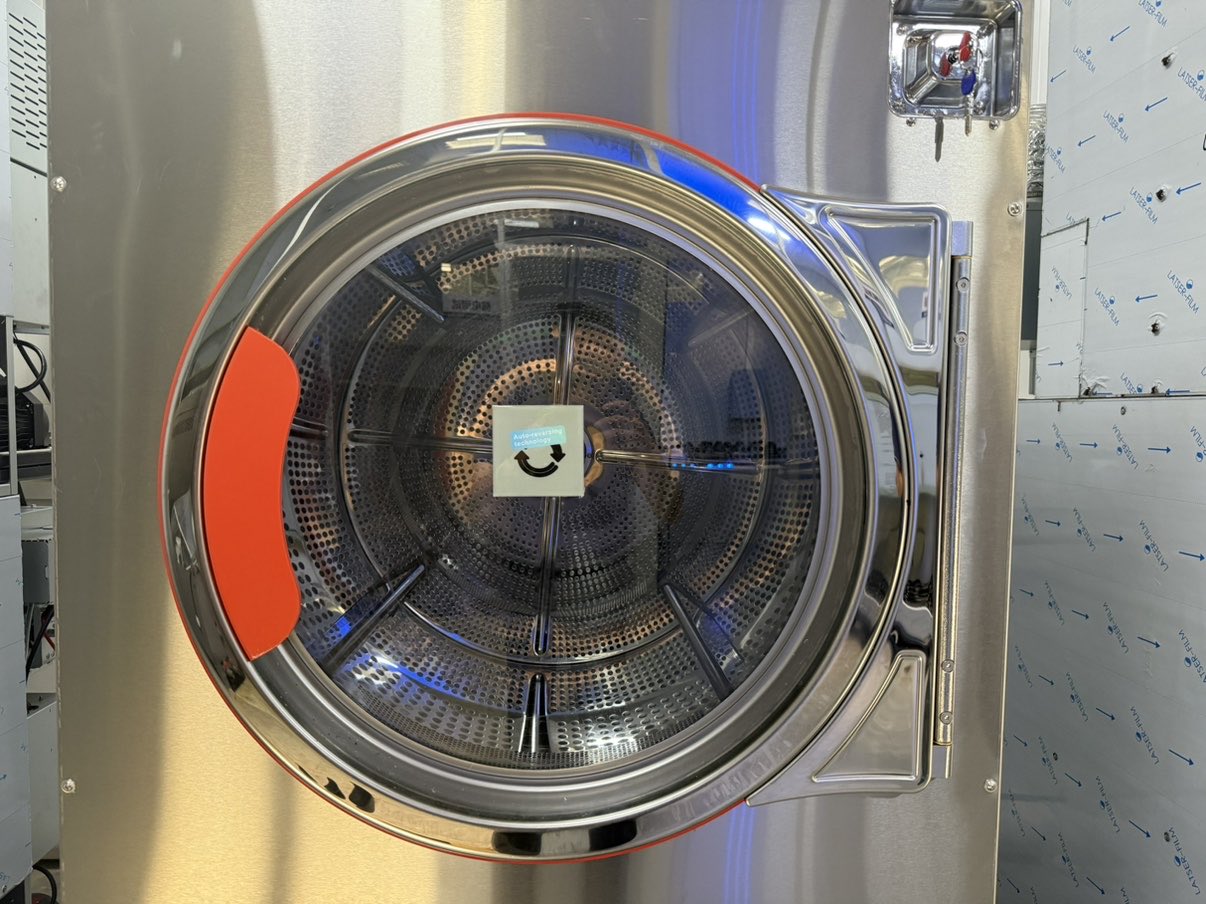

- Large door opening is convenient for loading and unloading.
- Multiple heating way is available for different environments use.
- Large and easy lint collector simplifies clean up.

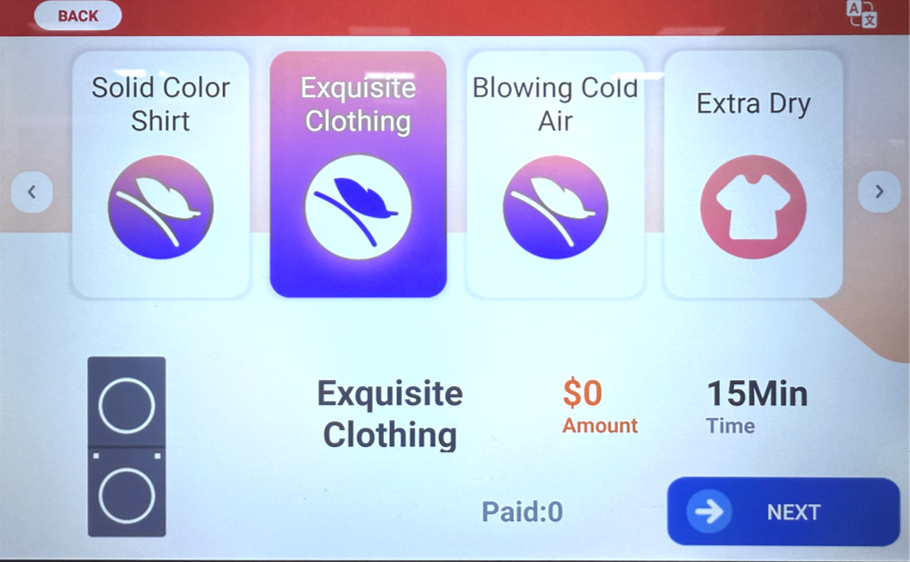

- 2nd-gen 10 inch touch screen, remote control system allows you to manage your laundry business through a mobile app.
- 20+ multiple language options are available.
- Edit programs and promotions according to your needs, error alert in seconds with details.

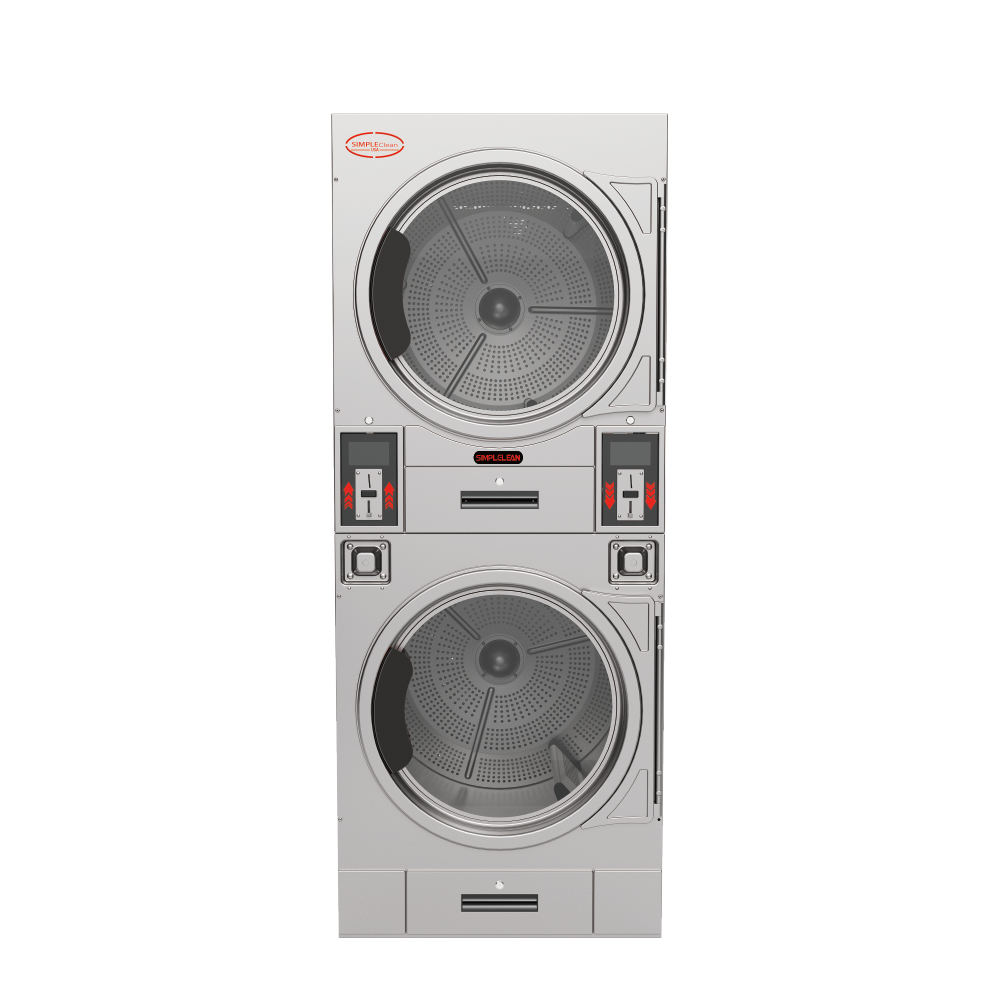

Stack Tumble Dryers
| Model |
EC/12DD |
EC/16DD |
EC/19DD |
EC/22DD |
EC/27DD |
| Drum |
| Loading Capacity( lbs-Kg) |
26lbs ( 12kg) |
35lbs ( 16kg) |
42lbs(22kg) |
50lbs(22kg) |
60lbs(27kg) |
| Volume (L) |
229*2 |
286*2 |
358*2 |
379*2 |
477*2 |
| Power |
| Main Motor( kw) |
0.25*2 |
0.25*2 |
0.25*2 |
0.55*2 |
0.55*2 |
| Fan motor (kw) |
0.37*2 |
0.37*2 |
0.37*2 |
0.37*2 |
0.37*2 |
| Heating (kw) Electric heated |
10.5*2 |
10.5*2 |
13.5*2 |
14.4*2 |
19.8*2 |
| Gas Consumption (kg/H) |
0.6*2 |
0.8*2 |
1*2 |
1*2 |
1.3*2 |
| CFM (Btu/H) |
55000*2 |
75000*2 |
90000*2 |
95000*2 |
115000*2 |
| Air Flow |
800*2 |
800*2 |
900*2 |
1000*2 |
1000*2 |
| Connection |
| Gas Inlet (inch) |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
| Exhaust Pipe(mm) |
200*2 |
200*2 |
200*2 |
200*2 |
200*2 |
| Net dimensions |
| L*W*H (mm) |
800×1031×2005 |
800×1161×2005 |
800×1326×2005 |
910×1208×2225 |
910×1378×2225 |
| Net weight (kg/lbs) |
298/657 |
317/699 |
356/785 |
380/838 |
395/870 |
| Wooden box dimensions |
| L*W*H (mm) |
920*1151*2155 |
920*1281*2155 |
920×1446×2155 |
1030*1328*2375 |
1030*1498*2375 |
| Gross Weight (kg/lbs) |
338/745 |
357/787 |
396/873 |
420/926 |
435/959 |
| Heating way |
| Electricity, Gas |
| Usage way |
| Coin or OPL |
