Soft Mount Washers (12-45kg)

  • Simple Installation: No need for steel bases or concrete reinforcements - simply move them into place with a pallet jack, back to bussiness the same day.
  • Large Drain Valve: 3-inch drain valve and pipe cut drain time and boosts efficiency.
  • UV disinfection: Each machine features 2  UV lights that provide reliable sterilization during whole process.

Send E-mail Chat now

  • Application
  • Feature
  • Technical Parameters
  • Inquiry

Application

  • Semi-automated laundry improves the working speed and efficiency of employees in laundry factory.
  • Keep textile clean in cruise liner, make your customer enjoy the clean tidy living environment.
  • All washer install UV light help to kill bacteria, especially in Inn, B&B, Hostel, Resort, Guest House, Capsule Hotel.

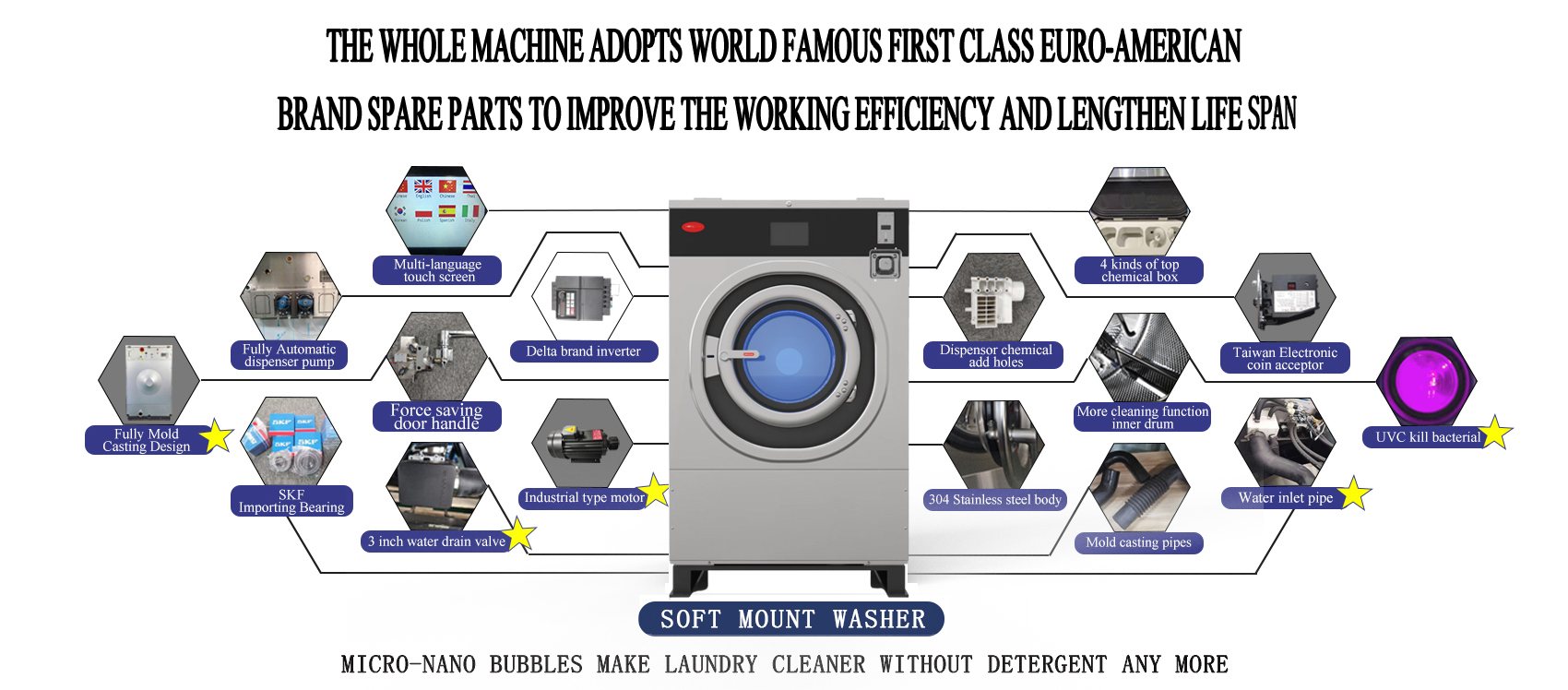

Feature

  • Double safety door lock system ensures safe operation and minimizes the risk of accidents.
  • Honeycomb structure of inner drum can reach more working efficiency and washing quality.
  • Up to 350G-force high spinning speed removes more water to reduce drying time and save energy, and bolting down is not required.
  • Automatic water mixer, which means mixing hot and cold water to a precise temperature with the programmed water level, save energy and reduce wash cycle time.
  • Manufactured in stainless steel tub, drum, top, front and side panels, which gives better elegant look and provides better quality.
  • Advanced inverter drive system and special heavy duty motor are used to provide smooth and reliable performance.
  • 2nd-gen 10 inch touch screen, remote control system allows you to manage your laundry business through a mobile app.
  • 20+ multiple language options are available.
  • Set up parameters of laundry programs easily.

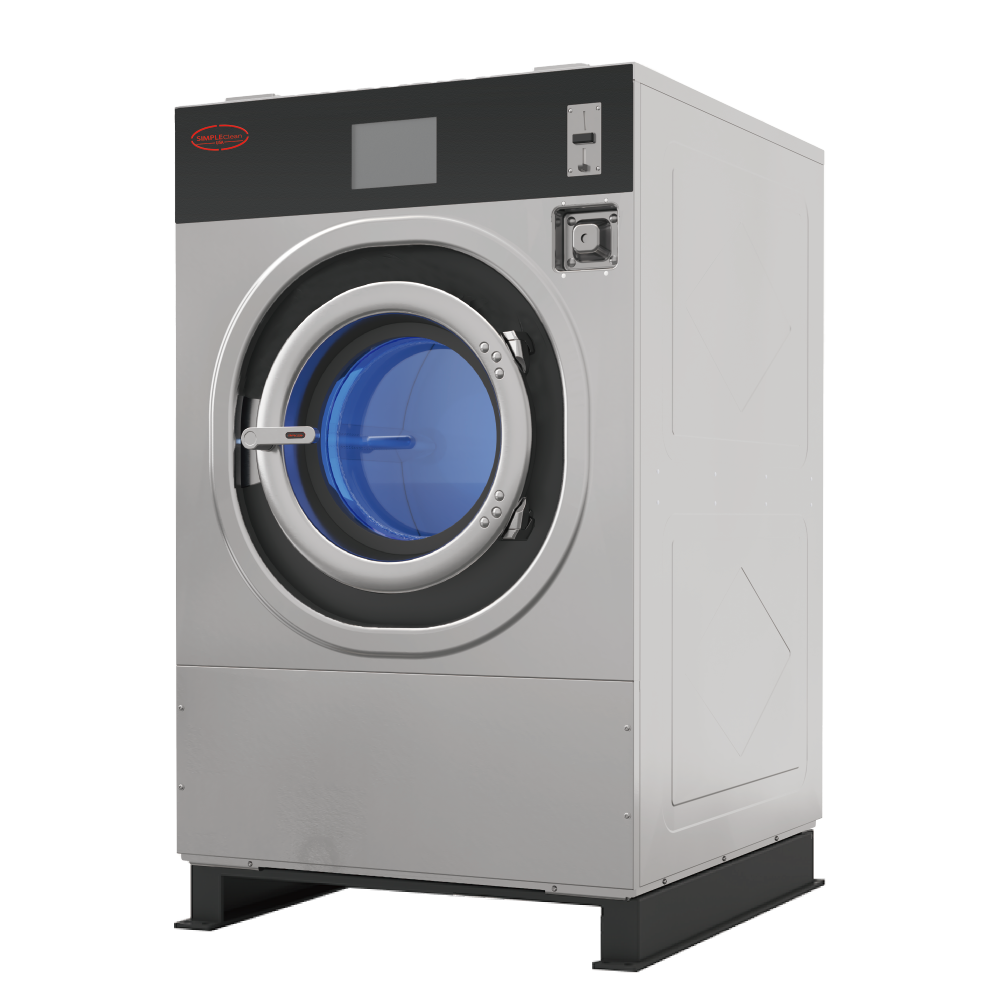

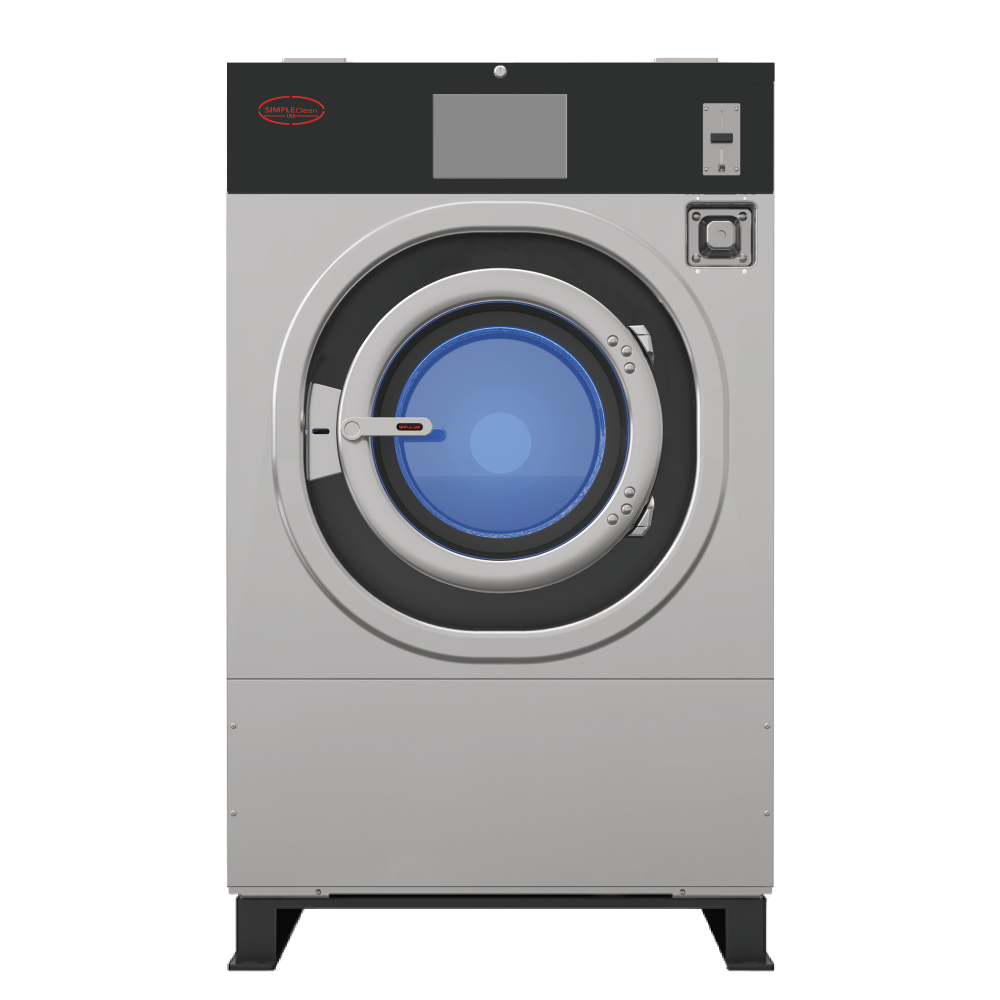

Soft Mount Washer

Model EC/12FW EC/16FW EC/22FW EC/27FW EC/35FW EC/45FW
Drum
Loading capacity (Ibs-kg) 261bs(12kg) 35Ibs(16kg) 501bs(22kg) 60Ibs(27kg) 801bs(35kg) 1001bs(45kg)
Volume  (L) 116 148 194 237 336 423
Diameter(mm/inch) 635/25 635/25 740/29.1 740/29.1 890/35 890/35
Depth(mm/inch) 365/14.4 465/18.3 450/17.7 550/21.7 540/21.3 680/26.8
Speed
Washing speed (rpm) 32 32 32 32 32 32
Mid spinning speed(rpm) 420 420 420 420 420 420
High spinning speed (rpm) 1000 1000 900 900 800 800
G-Force 363 363 343 343 325 325
Power
Motor(kw) 2.2 2.2 3 3.7 5.5 5.5
Heating(kw)electric heated 3*3 3*4 3*6 3*7 3*8 3*9
Inverter(kw)power 2.2 2.2 3.7 3.7 5.5 5.5
Connections
Water inlet(inch) 3/4 3/4 3/4 3/4 1 1
Drain diameter (inch) 3 3 3 3 3 3
Net dimensions
L*W”H(mm) 839*964*1360 839*1064*1360 939*1091*1497 939*1192*1497 1120*1230*1650 1120*1370*1650
L*W*H  (inch) 33*38*53.5 33*41.9*53.5 37*43*58.9 37*46.9*58.9 44.1*48.4*65 44.1*54*65
Net weight (kg/Ibs) 396/866 440/970 582/1283 663/1462 790/1741.7 880/1940.7
Plywood box dimensions
L*W*H(mm) 959*1084*1510 959*1184*1510 1059*1211*1647 1059*1312*1647 1230*1410*1770 1230*1550*1770
L*W*H  (inch) 37.8*42.7*59.5 37.8*46.6*59.5 41.7*47.7*64.8 41.7*51.7*64.8 48.4*55.5*69.7 48.4*61*69.7
Gross weight(kg/Ibs) 458/1010 507/1118 647/1426 728/1587 810/1785.7 900/1984.2
Heating way
Electricity,Hot water,Steam
Usage way
Coin or OPL
